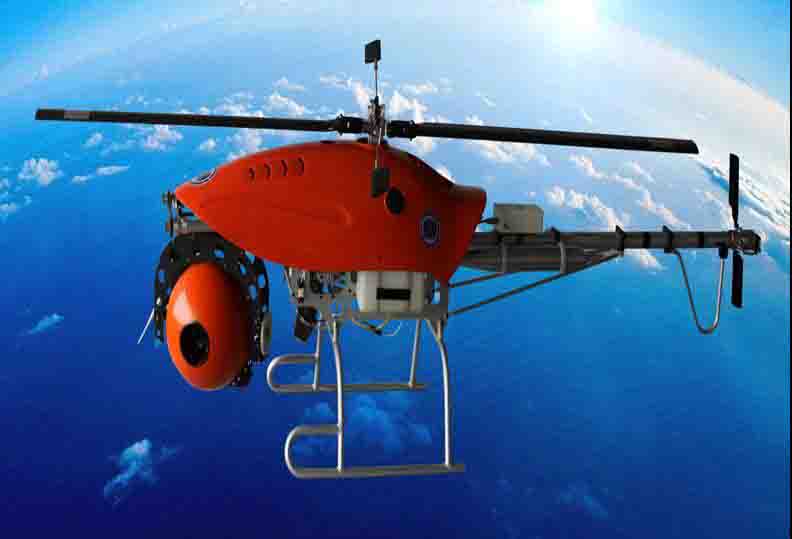

Page Shows 1 - 10 Of : 3 Ads  01           Clairvoyance UAV   "Clairvoyance" UAV is an small electrically powered UAV and it is to be used in Short-range surveillance.It plays an important role in reconnaissance  and aerial  photography  equipped with  Webcam, digital camera and microwave devices. It is compact, light weight, and it is also easy to operate and maintain. During flight operation, it can fly according to the scheduled routes and  the adjustable waypoints.Data and images can be transmitted at the same time.Horizontal resolution of the Webcam :420 TV lines. Effective Communication Distance :20km. It is a tactical reconnanissance UAV with national advanced level which recently launched by our company.   Wingspan: 1100mmBody length: 900mmLoad: 200gTake-off gross weight: 2200gMaximum thrust:1350gCruising speed: 40-60km/hFlying height: 20-2000mEndurance: 20-50minMaximum wind: 4Landing: hand rolls        glxyfx      Hits : 35 Date 21/03/2010 19:13:34  Featured Products :         Tian Yi V UAV helicopter   Tianyi V unmanned helicopter is based on the current domestic and international mainstream design philosophy, which with an oil engine produce and develop independently by Xin Ying company. The overall layout bases on pre-suspension method which makes it possible to achieve greater shooting angles and more flexible PTZ setting. Another biggest advantage of the front suspension design is improving the overall layout of the aircraft center of gravity, reducing the screen shaking, vibration and other issues make by aerial camera equipment of general model helicopters hanging in the aircraft fuselage causing the low center of gravity. Payload is 12kg that also can support for carrying a 35mm film machine, which ensure the broadcast-quality video effects.Main application areas:Film and television production, advertising aerial, security monitoring, fire monitoring, communication relay, scientific research and testing, geophysical surveying, meteorological monitoring, pipeline monitoring, power patrol, environmental monitoring, anti-smuggling surveillance, disaster relief and so on. FeaturesDesign clever and compactSmall size, light weight, load ratio largeOperation flexible and transportation easyProduct maturity, high reliability and good maintainabilityCost-effective, widely usage  Main parametersBody parametersMain rotor length: 2,146 mmTail rotor length: 403 mmBody length: 1,778 mmBody width: 508 mmBody high: 711 mmWeight: Approximately 16 kg (full load plus fuel take-off weight is about 32kg) Engine parameters:Engine model: Japan ZENOAH air-cooled cylinder boxer engineDisplacement: 80 ccOutput power: 7Start method: external electric starterUsing fuel: mixture gasoline + oil Performance parameters:Endurance: about 60 minutesMaximum fuel capacity: 5 liters (available self-modify according to loading)Maximum payload: about 12kg (when fuel reaches 5L)Speed: 15 ~ 30km / hAltitude:10-1000mEmergency: protection out of control can be set to maintain the aircraft in-situ (such as signal interference)Flight stability instrument: assist the flight crew to increase stability and security of the aircraft, in the event of an emergency, the flight crew can maintain the aircraft hovering at a steady state, as long as he can control the throttle. (Option) Ground Control Station Product function:Adjusting and saving all control parameters online, with usage easily stand-alone parameter adjustment software,  telemetries flight data real-time and records all telemetry data, including control voltage monitoring, electric aircraft power voltage monitoring, GPS accuracy of detection, autopilot temperature detection, design routes, switch routes real-time, embedded electronic map, track playback and so on. SpecificationsSize: 485x392x192mmWeight (including equipment): 8.8 kgPower Manager: 12V voltage input PTZ - axis servo Product features:Excellent technique, precise control; three-axis servo tracking, simultaneous elimination vibration of platform, which makes the screen even better. SpecificationsWeight: 3 kgLoad: 4 kgHorizontal rotation: 270 degreesTilt rotation: 270 degreesRotation: 360 degrees Quotation contains below accessories:Contains airframe special-purpose gasoline engine, 9-channel control system, autopilot, high-performance speed exhaust pipe, micro-computer control system, servo, figure transmission system ,420-550-line CCD camera (Special Customization:  3.2 million-pixel high-speed digital CCD camera) or 10 million -21 million pixel camera or 35mm professional film machine, PTZ system (PTZ + PTZ control systems), ground stations, antennas and so on.       glxyfx      Hits : 25 Date 21/03/2010 19:07:49         Surveyor -18F UAV    Surveyor 18F Detailed composition of UAV aerial shot system  Seq Equipment Name Model and composition of eqipment Quatity Unit 1 Autopilot Made in China 1 Piece 2 Propelled catapult Loading 20-35KG 1 Piece 3 Airframe of UAV Composite material take-off weight is 16KG 1 Piece 4 Aeroengine   62ccimport 1 Piece 5 PCM1024 remote control   Import 1 Set 6 Servo   3010 12 Piece 7 Autopilot battery     2 Piece 8 Servo battery     2 Piece 9 Full-frame digital camera body   1 1 Piece 10 24mm fixed-focus lens     1 Piece 11 16G High-Speed CF Card     2 Piece 12 Ground Control Station     1 Set 13 Car Radio Antenna     1 Set 14 Car Antenna Lifting Bracket     1 Set 15 Set Tools     1 Set 16 Field DPM     1 Set 17 Multi Charger   With automatic charge and discharge function 1   18 Tank , battery     1 Set 19 Pumps     1 Piece 20 Dedicated Gasoline Starter     1 Piece 21 Aircraft Box   9mm board strengthen the internal2200mm*600mm*600mm 1 Piece 22 Fuel / Start-up Kit     1 Piece 23 Remote Control Box     1 Piece 24 Toolbox     1 Piece 25 DPM Box     1 Piece 26 Communication Equipment Box     1 Piece 27 Load Box     1 Piece 28 Catapult Box     4 Piece 29 Parachute   1 Piece   Surveyor 18F UAV related parameters  Wingspan   2.5 M Body length   1.8 M Load oil   3.8 L Total distance   180 KM Endurance   2 Hours Load Weight   5KG (including fuel, camera) Maximum Takeoff Weight   17 KG Landing Ejection / Parachute      glxyfx      Hits : 35 Date 21/03/2010 19:02:55 Page Shows 1 - 10 Of : 3 Ads  01
